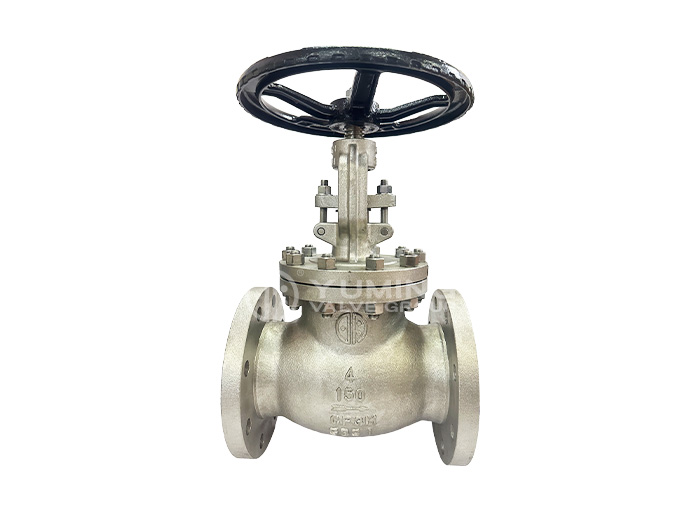

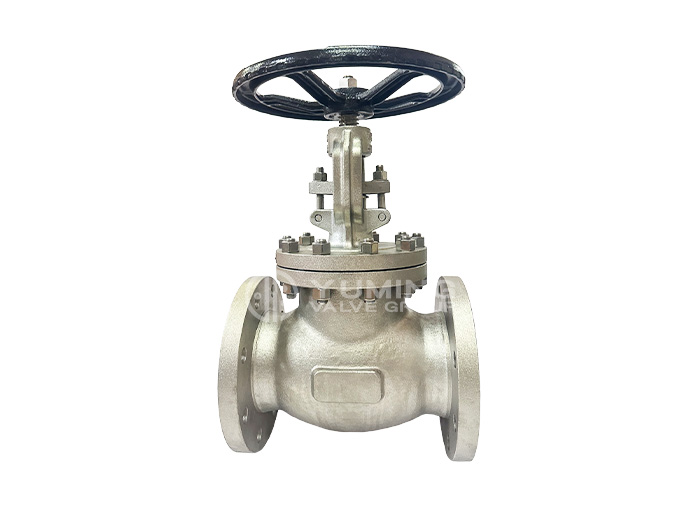

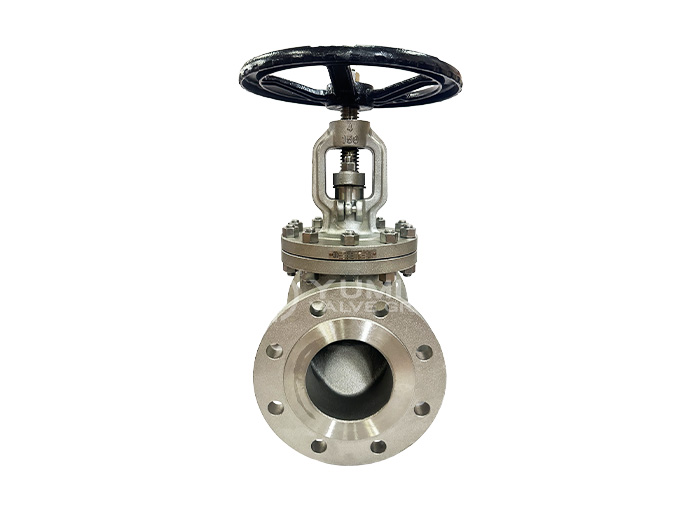

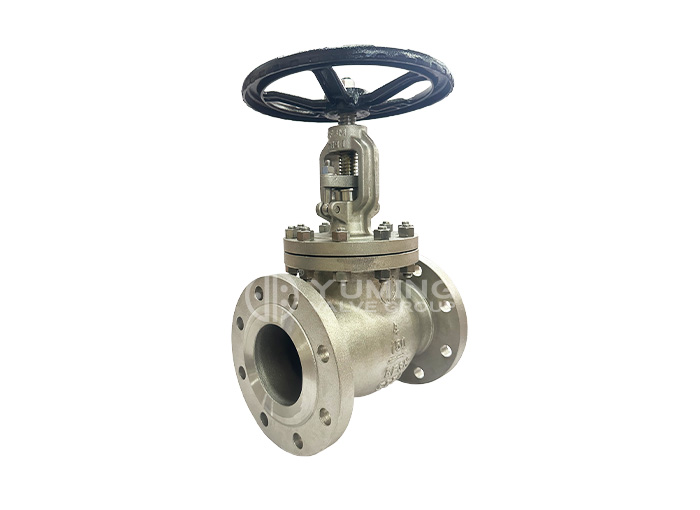

API Standard Globe Valve-Yuming Valve

Introduction

Body Test: .5 times the working pressure with water. This test is performed after valve assembly and with disc in half position open, it is called as a body hydro test.

Seat Test: 1.1 times the working pressure with water.

Function / Operation Test: At the time of final inspection, each valve and its actuator (Flow-Control Lever / Gear / Pneumatic Actuator), under goes a complete operating test (Open/Close). This test carried out without pressure and at ambient temperature. It ensures the correct operation of the valve / actuator assembly with accessories such as solenoid valve, limit switches, air filter regulator etc.

Special Test: On request, any other test can be carried out according to special instruction by client.

Product advantages

Simple structures.Easier to be manufactured and repaired.
Small working stroke,short opening and closing time. 　　
Good sealing performance,small friction between sealing face and life long.
The friction between sealing face is smaller than gate valve during the process of opening and closing.And it’s wear-resistant. 　　
It usually have only one sealing face,good manufacturing process and easy to be repaired.
The structure style of globe valve’s body can be divided into straight-through, three-and right-angle type.

DATA

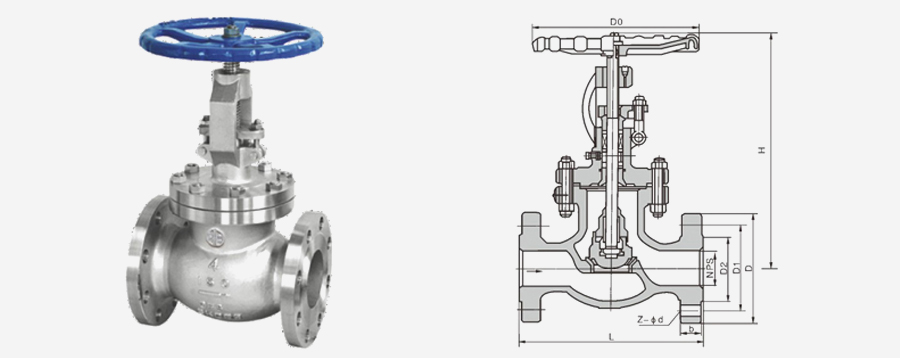

specifications		L	D	D1	D2	b	n-Φd	W	H
class150
1/2”	Jum	108	90	60.5	35	12	4-15	125	169
1/2”	in	4.25	3.5	2.38	1.38	0.47	4-0.59	4.92	6.65
3/4	mum	117	95	70	43	12	4-15	125	180
3/4	in	4.61	3.86	2.76	1.69	0.47	4-0.59	4.92	7.08
1"	mum	127	108	79.5	51	12	4-15	125	190
1"	in	5	4.25	3.13	2	0.47	4-0.59	4.92	7.48
1 1/2°	mum	165	127	98.5	73	14.3	4-16	180	347
1 1/2°	in	6.5	5	3.88	2.87	0.56	4-0.62	7.09	13.66
2"	mum	203	152	120.5	92	15.9	4-19	180	356
2"	in	8	6	4.75	3.62	0.625	4-0.75	7.09	14
2 1/2"	Jum	216	178	139.5	105	17.5	4-19	240	381
2 1/2"	in	8.5	7	5.5	4.12	0.69	4-0.75	9.45	15
3"	Jum	241	190	152.4	127	19.1	4-19	280	13
3"	in	9.5	7.5	6	5	0.75	4-0.75	11.02	16.25
4"	Jum	292	229	190.5	157	24	8-19	280	500
4"	in	11.5	9	7.5	6.19	0.94	8-0.75	11.02	19.68
6"	mum	406	279	241.5	216	25.4	8-22	360	656
6"	in	16	11	9.5	8.5	1	8-0.88	14.17	22.25
8°	mum	495	343	298.5	270	29	8-22	17.75	660
8°	in	19.5	13.5	11.75	10.62	1.12	8-0.88	450	26
					class300
1/2”	Jum	152	95	66.5	35	15	4-15	125	190
1/2”	in	5.98	3.74	2.62	1.38	0.95	4-0.59	4.92	7.84
3/4	Jum	178	117	82.5	43	16	4-19	125	212
3/4	in	7	4.61	3.25	1.69	0.62	4-0.75	4.92	8.35
1"	mum	203	124	89	51	18	4-19	160	231
1"	in	8	4.9	3.5	2	0.71	4-0.75	6.2	9.1
1 1/2"	Jum	229	156	114.5	73	20.7	4-22	200	391
1 1/2"	in	9	6.12	4.51	2.87	0.81	4-0.87	8	15.43
2”	Jum	267	165	127	92	22	8-19	200	406
2”	in	10.5	6.5	5	3.62	0.88	8-0.75	7.87	16
2 1/2	mum	292	190	149	105	25	8-22	240	457
2 1/2	in	11.5	7.5	5.88	4.12	1	8-0.88	9.45	18
3'	Jum	318	210	168.5	127	29	8-22	280	470
3'	in	1250	8.25	6.62	5	1.12	8-0.88	11.02	18.5
4	Jum	356	245	200	157	32	8-22	320	590
4	in	14	10	7.88	6.19	1.25	8-0.88	12.6	23.23
6°	Jum	444	318	270	216	37	12-22	500	711
6°	in	17.5	12.5	1062	8.5	1.44	12-0.88	19.68	28
8°	Jum	559	381	330	270	41	12-25	500	750
8°	in	22	15	13	10.62	1.62	12-100	19.68	29.5
class600
1/2"	mum	165	95	66.5	35	15	4-15	160	285
1/2"	in	6.5	3.74	2.62	1.38	0.59	4-0.59	6.2	11.22
3/4”	Jum	190	117.5	82.5	43	16	4-19	160	285
3/4”	in	7.48	4.61	3.25	1.69	0.62	4-0.75	6.2	11.22
1"	mum	216	124	89	2	18	4-19	160	313
1"	in	8.5	4.9	3.5	73	0.71	4-0.75	6.2	12.32
1 1/2"	Jum	241	156	114.5	51	23	4-22	240	365
1 1/2"	in	9.5	6.12	4.51	92	0.91	4-0.87	9.45	14.17
2”	Jum	292	165	127	2.87	25	8-19	240	444
2”	in	11.5	6.5	5	105	1	8-0.75	9.45	17.5
2 1/2"	mum	330	190	149	127	29	8-22	240	483
2 1/2"	in	18	7.5	5.88	5	1.12	8-0.88	9.45	19
3"	mum	358	210	168	3.62	32	8-22	280	533
3"	in	14	8.25	6.62	157	1.25	8-0.88	11.02	21
4”	Jum	4.06	273	216	216	38.1	8-25	360	622
4”	in	16	10.75	8.5	4.12	1.5	8-19	14.17	24.5
6	mum	459	356	292	8.5	47.7	12-29	500	800
6	in	19.5	14	11.5	270	1.88	12-1.14	19.68	31.5
8°	Jum	597	419	34.9	6.19	55.6	12-32	550	927
8°	in	23.5	16.5	13.75	10.62	2.19	12-1.25	21.65	36.5
